afl::Integrator Class Reference

#include <integrator.h>

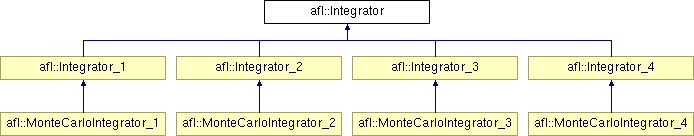

Inheritance diagram for afl::Integrator:

List of all members.

Public Member Functions
virtual	~Integrator ()
virtual Value	integral (const Simplex &s) const =0
virtual void	toXML (std::ostream &doc) const =0
virtual Integrator *	clone ()=0
virtual void	setField (const Field *field)
virtual const std::string &	getMethod () const =0
void	setParentField (const Field *parent)
Protected Member Functions
	Integrator (const Field *field, const Parameters &params)
Protected Attributes
const Field *	_field

---

Detailed Description

class Integrator Approximates the integral of a field

---

Constructor & Destructor Documentation

virtual afl::Integrator::~Integrator (   )  [virtual]

Destructor

afl::Integrator::Integrator (  const Field *  field, const Parameters &  params )  [protected]

constructor Parameters: field  the field to approximate integrals in params  the parameters needed for this integrator

---

Member Function Documentation

virtual Integrator* afl::Integrator::clone (   )  [pure virtual]

Returns: a true copy of the object. The object becomes the responsibility of the calling function Implemented in afl::Integrator_1, afl::Integrator_2, afl::Integrator_3, afl::Integrator_4, afl::MonteCarloIntegrator_1, afl::MonteCarloIntegrator_2, afl::MonteCarloIntegrator_3, and afl::MonteCarloIntegrator_4.

virtual const std::string& afl::Integrator::getMethod (   )  const [pure virtual]

Returns: the name of the method this integrator implements Implemented in afl::Integrator_1, afl::Integrator_2, afl::Integrator_3, afl::Integrator_4, afl::MonteCarloIntegrator_1, afl::MonteCarloIntegrator_2, afl::MonteCarloIntegrator_3, and afl::MonteCarloIntegrator_4.

virtual Value afl::Integrator::integral (  const Simplex &  s  )  const [pure virtual]

Parameters: s  the simplex to integrate over Returns: the integral over s Implemented in afl::Integrator_1, afl::Integrator_2, afl::Integrator_3, afl::Integrator_4, afl::MonteCarloIntegrator_1, afl::MonteCarloIntegrator_2, afl::MonteCarloIntegrator_3, and afl::MonteCarloIntegrator_4.

virtual void afl::Integrator::setField (  const Field *  field  )  [virtual]

sets the field this derivator would operate on Parameters: field  the field

void afl::Integrator::setParentField (  const Field *  parent  )  [inline]

sets the parent field of this interpolation Parameters: parent  the field that this integrator should operator on

virtual void afl::Integrator::toXML (  std::ostream &  doc  )  const [pure virtual]

represents the integrator for an FRL document Parameters: doc  the output stream that the xml will be appended to Implemented in afl::Integrator_1, afl::Integrator_2, afl::Integrator_3, afl::Integrator_4, afl::MonteCarloIntegrator_1, afl::MonteCarloIntegrator_2, afl::MonteCarloIntegrator_3, and afl::MonteCarloIntegrator_4.

---

Member Data Documentation

const Field* afl::Integrator::_field [protected]

the field this derivator acts on.

---

The documentation for this class was generated from the following file:

• integrator.h

---
