afl::Function Class Reference

#include <functions.h>

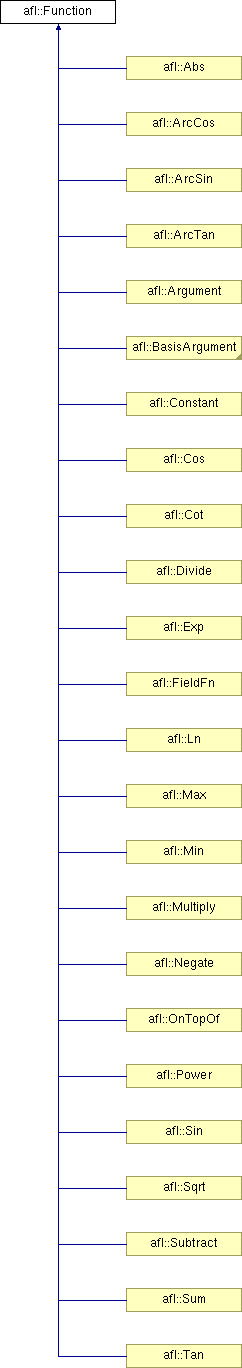

Inheritance diagram for afl::Function:

List of all members.

Public Types
typedef FunctionIterator	iterator
Public Member Functions
virtual data_t	evaluate (const Point &p, Context *ctxt=NULL) const =0
virtual void	serialise (std::ostream &doc) const =0
virtual Function *	clone () const =0
iterator	begin ()
iterator	end ()
Protected Attributes
std::vector< Function * >	_args
Classes
struct	Context

---

Detailed Description

an abstract class of functions

---

Member Typedef Documentation

typedef FunctionIterator afl::Function::iterator

an iterator to traverse function trees

---

Member Function Documentation

iterator afl::Function::begin (   )  [inline]

an iterator pointing at this function

virtual Function* afl::Function::clone (   )  const [pure virtual]

Returns: an exact copy of this function Implemented in afl::FieldFn, afl::Negate, afl::Argument, afl::BasisArgument, afl::BasisArgument_1, afl::BasisArgument_2, afl::BasisArgument_3, afl::BasisArgument_4, afl::KsiBasisArgument_1, afl::KsiBasisArgument_2, afl::KsiBasisArgument_3, afl::KsiBasisArgument_4, afl::Constant, afl::Sum, afl::Subtract, afl::Multiply, afl::Divide, afl::Power, afl::OnTopOf, afl::Sin, afl::ArcSin, afl::Cos, afl::ArcCos, afl::Tan, afl::ArcTan, afl::Cot, afl::Ln, afl::Exp, afl::Sqrt, afl::Abs, afl::Min, and afl::Max.

iterator afl::Function::end (   )  [inline]

a terminating iterator that points at nothing

virtual data_t afl::Function::evaluate (  const Point &  p, Context *  ctxt = NULL )  const [pure virtual]

evaluates the function Parameters: p  the location to evaluate the function at ctxt  the context for the evaluation Returns: the value of the field at (x,y,z,t) Implemented in afl::FieldFn, afl::Negate, afl::Argument, afl::BasisArgument, afl::BasisArgument_1, afl::BasisArgument_2, afl::BasisArgument_3, afl::BasisArgument_4, afl::KsiBasisArgument_1, afl::KsiBasisArgument_2, afl::KsiBasisArgument_3, afl::KsiBasisArgument_4, afl::Constant, afl::Sum, afl::Subtract, afl::Multiply, afl::Divide, afl::Power, afl::OnTopOf, afl::Sin, afl::ArcSin, afl::Cos, afl::ArcCos, afl::Tan, afl::ArcTan, afl::Cot, afl::Ln, afl::Exp, afl::Sqrt, afl::Abs, afl::Min, and afl::Max.

virtual void afl::Function::serialise (  std::ostream &  doc  )  const [pure virtual]

adds the symbolic value of the function to an output stream Parameters: doc  the output stream to put the function on Implemented in afl::FieldFn, afl::Negate, afl::Argument, afl::BasisArgument, afl::KsiBasisArgument_1, afl::KsiBasisArgument_2, afl::KsiBasisArgument_3, afl::KsiBasisArgument_4, afl::Constant, afl::Sum, afl::Subtract, afl::Multiply, afl::Divide, afl::Power, afl::OnTopOf, afl::Sin, afl::ArcSin, afl::Cos, afl::ArcCos, afl::Tan, afl::ArcTan, afl::Cot, afl::Ln, afl::Exp, afl::Sqrt, afl::Abs, afl::Min, and afl::Max.

---

Member Data Documentation

std::vector<Function*> afl::Function::_args [protected]

any functions that this function takes as arguments

---

The documentation for this class was generated from the following file:

• functions.h

---
